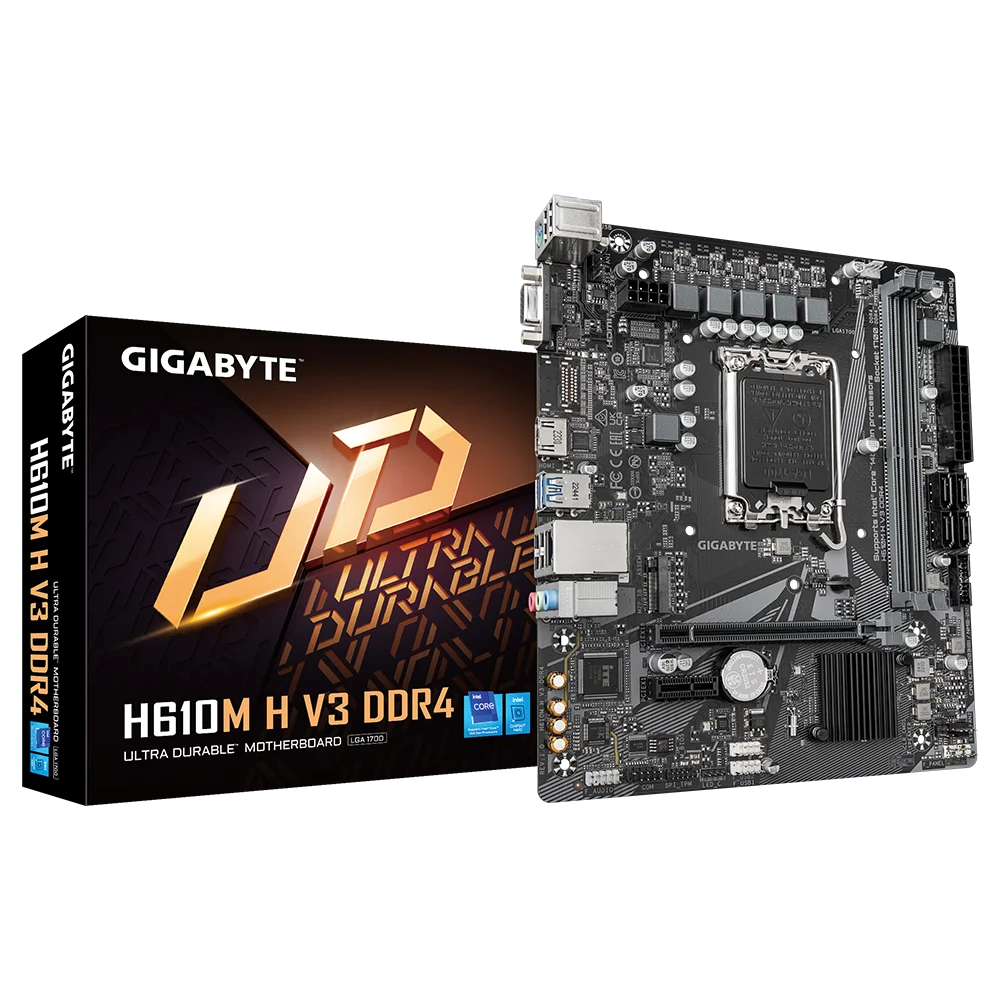

Mainboard Gigabyte H610M H V3 Rev 1.0 DDR4 | LGA 1700, mATX, 2 khe RAM
1.810.000₫
Quà tặng / Khuyến mãi
Mô tả
#####
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. (Please refer to “CPU Support List” for more information.) |
| Chipset |
Intel® H610 Express Chipset. |
| Memory |
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC and non-ECC Un-buffered DIMM memory modules. Support for Extreme Memory Profile (XMP) memory modules. (Please refer to “Memory Support List” on GIGABYTE’s website.) |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port (1920×1200@60 Hz), 1 x HDMI port (4096×2160@60 Hz). Support for HDMI 2.1 and HDCP 2.3. |
| Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. |
| LAN |
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1. |
| Storage Interface |
Chipset: 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors. |
| USB |
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available via internal header), 4 x USB 2.0/1.1 ports on the back panel. Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available via internal headers. |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 connector, 4 x SATA 6Gb/s connectors, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, etc. |
| Back Panel Connectors |
1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage, temperature, and fan speed detection. Water cooling flow rate detection, fan fail warning, fan speed control. |
| BIOS |
1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features |
Support for APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash. |
| Bundled Software |
Norton® Internet Security (OEM version), LAN bandwidth management software. |
| Operating System |
Support for Windows 11 64-bit and Windows 10 64-bit. |
| Form Factor |
Micro ATX Form Factor; 22.3cm x 19.3cm |
